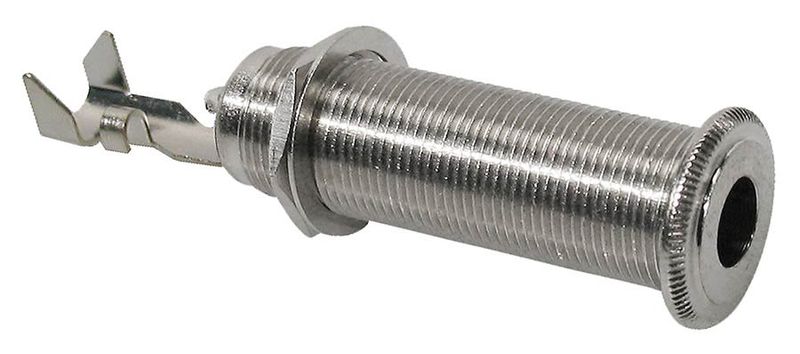

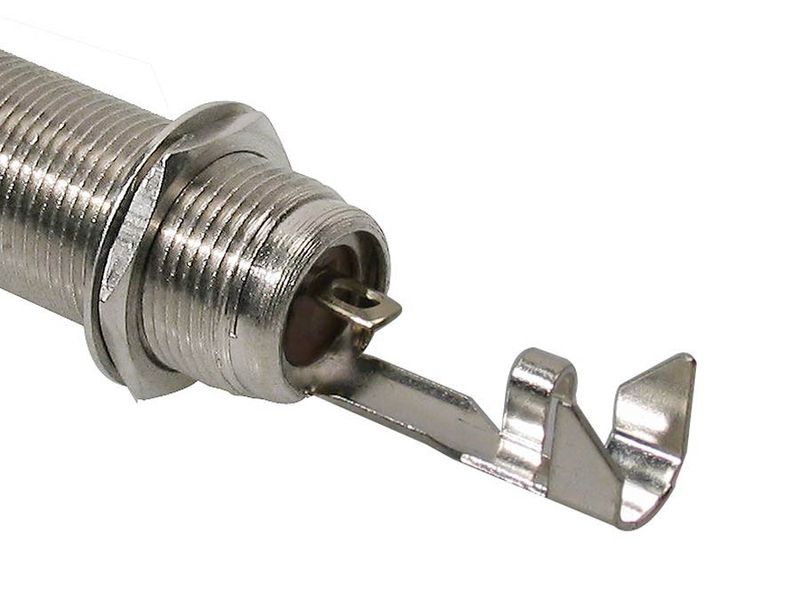

Jacks are standard 1/4" phone jacks with extra long threaded bushing for mounting in panels/chassis up to 1.25" thick. Metal bushing virtually eliminates hum pick-up, and is ideal for electric guitar and speaker connections. Jacks mate with standard commercial 1/4" phone plugs. Jacks mount in a single .469" diameter hole. Rugged cable clamp protects connections from twisting and pulling stresses.
Spesifikasjoner
Configuration
- Number of Conductors: 2
- Product Line: Littel Jacks
- Mounting Type: Panel
- Termination Style: Solder
- Contact Plating: Tin
- Color: Nickel
- Locking: Non-Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 1/4" Phone Jacks & Plugs
- Jack-Plug Type: Jack
- Special Feature: Thick Panel "End Pin" Jack
Electrical
- Current Rating: 1 Amps
- Circuit-Schematic: Single Open
Mechanical
- Panel Thickness: 1.25 in
Environmental
- Temperature Range: -55C to +85C
- Shielding: Unshielded
- Minimum Temperature: -55 C
- Maxiumum Temperature: 85 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Body Material: Copper Alloy
- Body Plating: Nickel
- Contact Material: Copper Alloy
- Insert Material Type: Rigid Plastic Insulating Spacers
- Terminal Material: Copper Alloy
- Spring Material: Copper Alloy
- Sleeve Material: Steel
