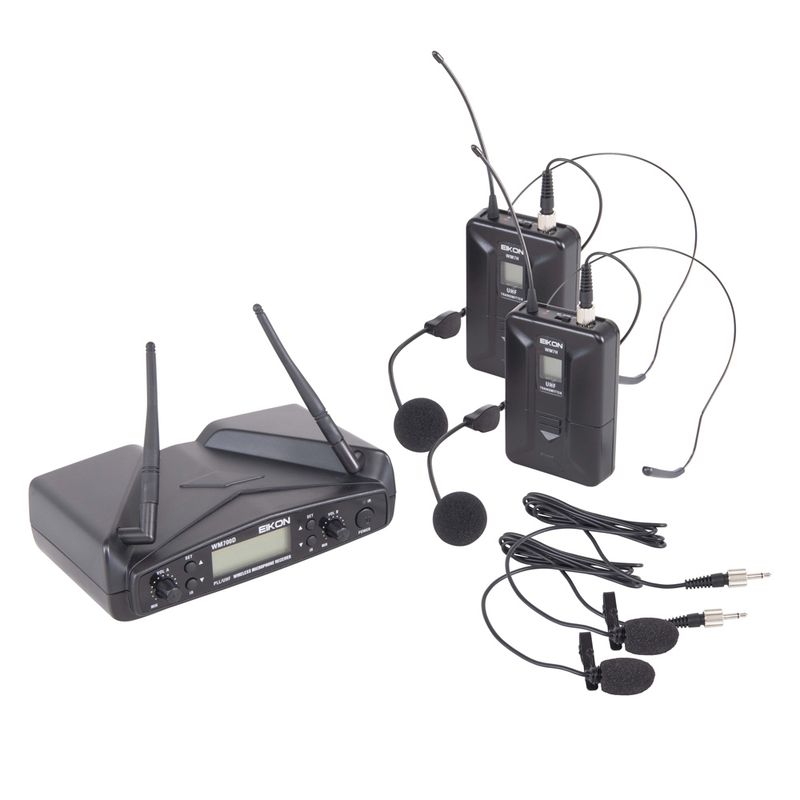

Dual Channel PLL UHF Wireless Belt-Pack Microphone system
-PLL –16 CH Selectable frequency wireless microphone system -32 Khz Digital Tone Pilot -New durable Painting Finishing -Universal USB Power Adapter -823 - 832 Mhz frequency range -30 meter/ 100 feet range -50 Hz -15 KHz frequency response -105 dB signal/ noise ratio -Condenser headset with cardioid capsule -Up to 4 frequency usable in the same location -ABS carrying and storage case

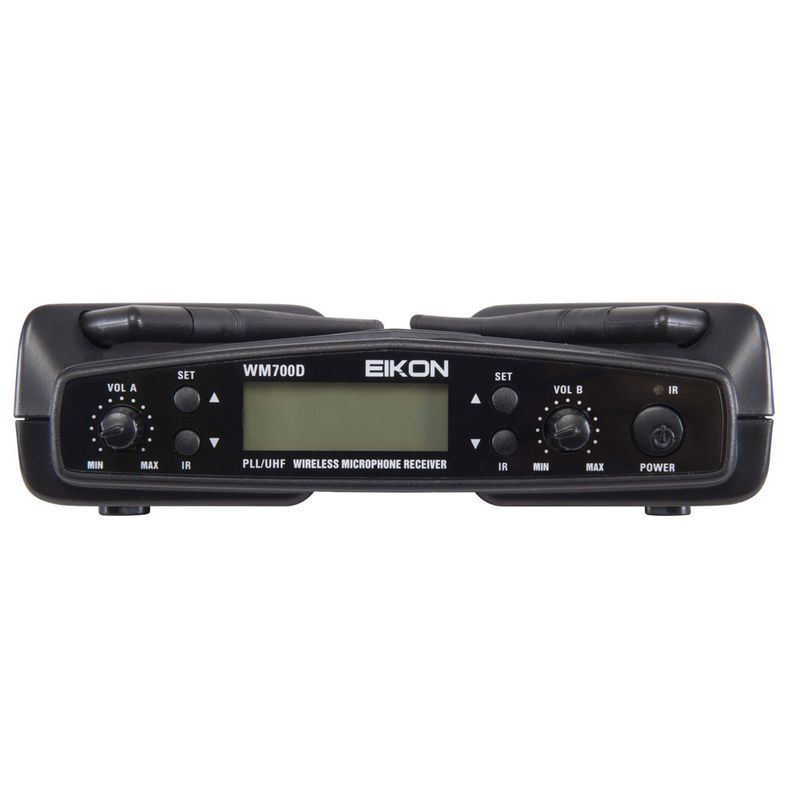

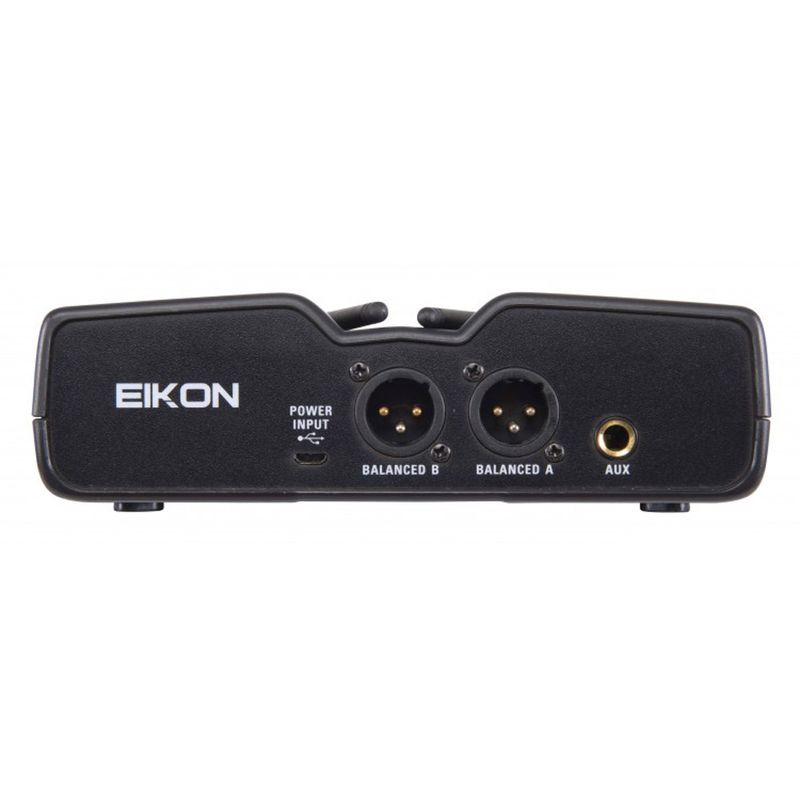

RECEIVER
Frequency Band UHF: 823-832 MHz
RF Sensibility -105 dBm
RF Image/Spurious Rej. >70 dB
RF Interference Reject. >70 dB
RF Frequency Stability ±0.002%
THD Distortion <1%
S/N Ratio >105 dB
Frequency Response 50 Hz – 15 KHz (±3 dB)
Power Supply 5 V DC 500 mA
Dimensions (mm) 175 x 135 x 45

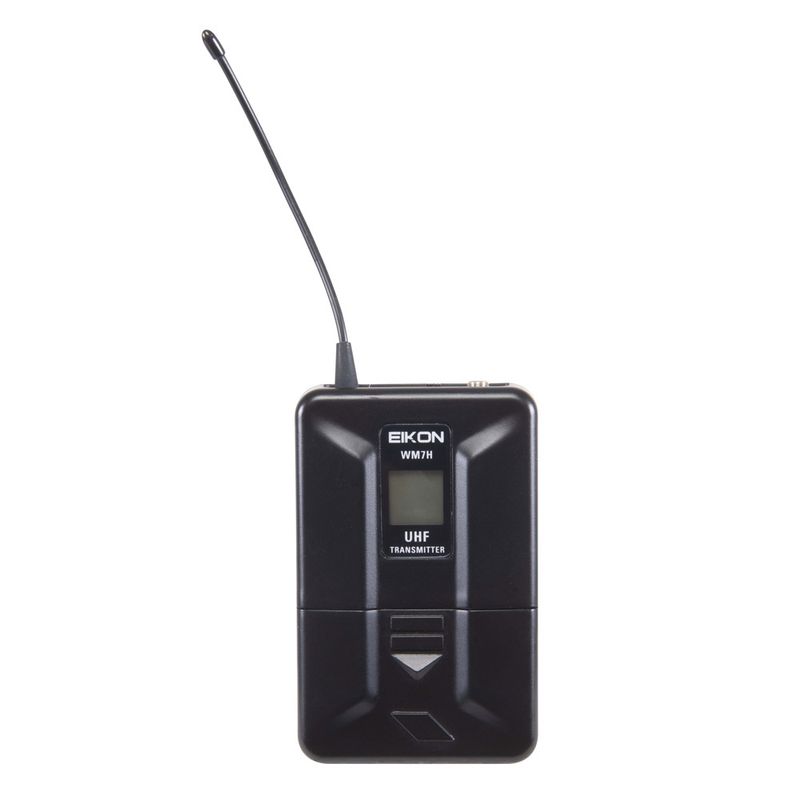

BELT-PACK TRANSMITTER
RF Frequency Band UHF: 823-832 MHz
RF Power <10 dBm
Modulation method FM (F3E)
RF Max deviation ±40 KHz
RF Frequency Stability ±0.002%
Spurious Emission under limits EN 300422
Frequency Response 50 Hz – 15 KHz (±3 dB)
Included Microphones 2

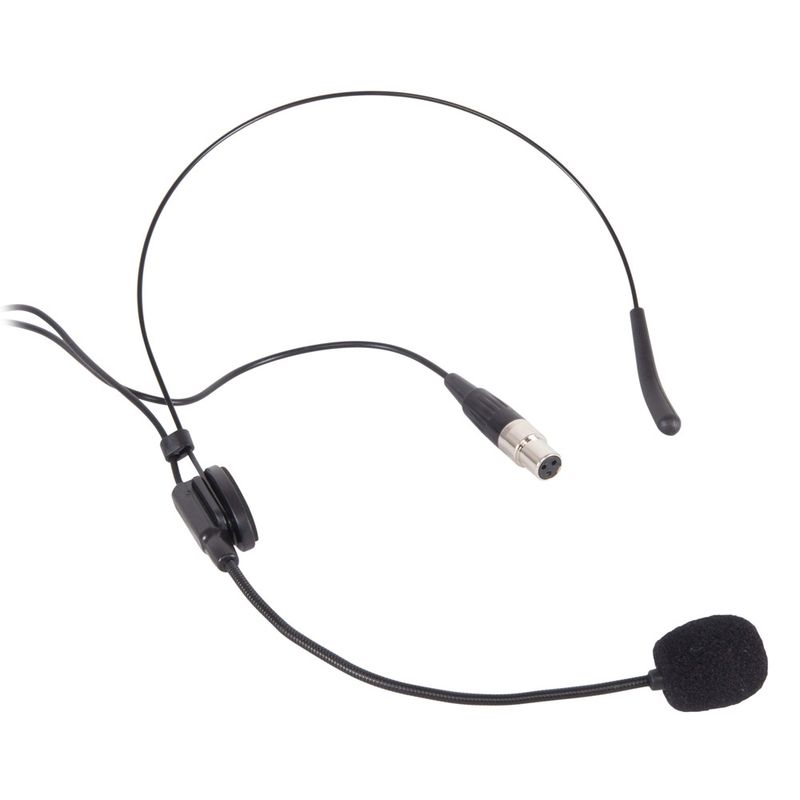

HCM25 Headset Mic. Cond. Cardiod

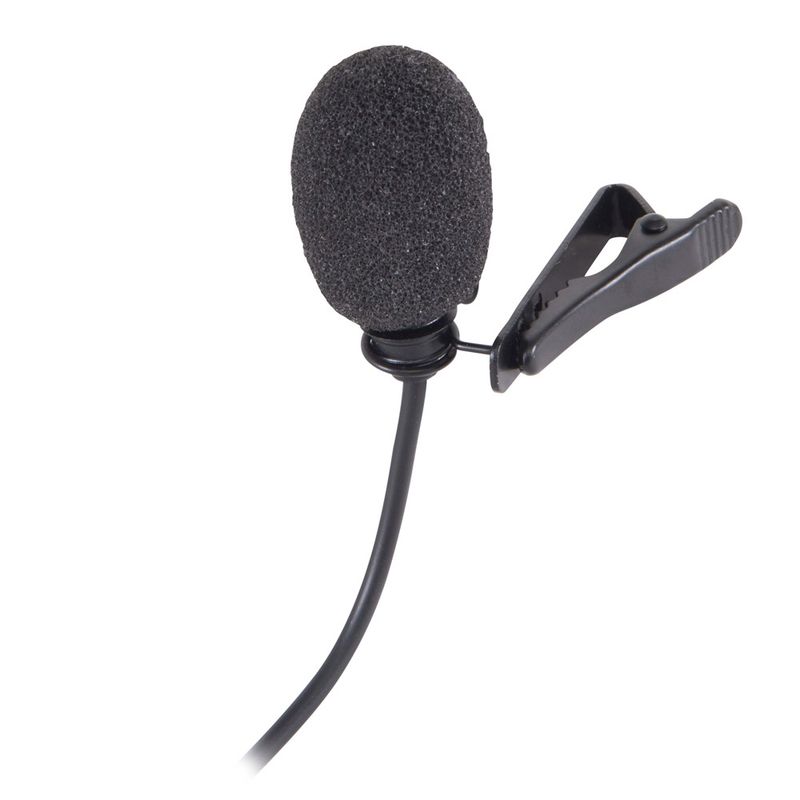

LCH100 Lavalier Mic. Cond. Cardiod
Power Supply 2x1.5V AA alkaline bat
Dimensions (mm) 100 x 65 x 30
