Stereo Dante monitorinterface med hodetelefon og linje ut. Integrert switch. PoE.

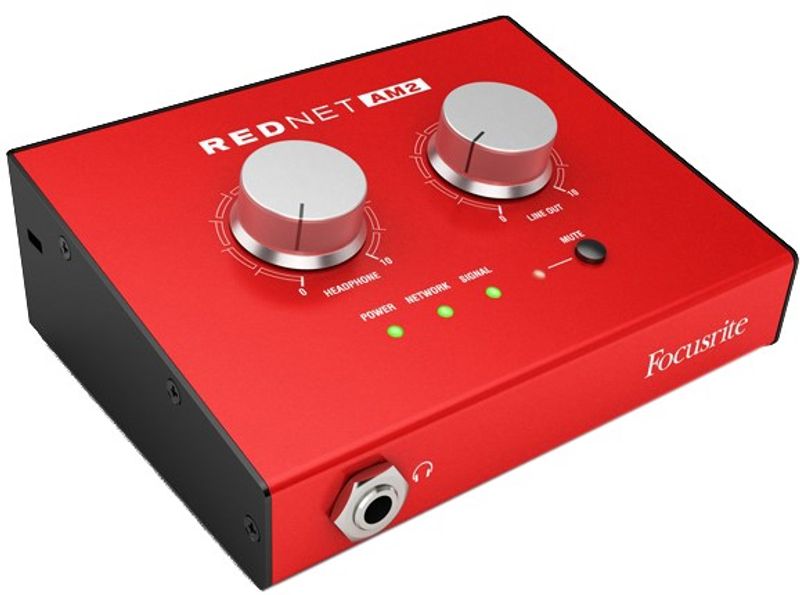

RedNet AM2 er en stereo monitor-boks med utganger på både hodetelefon og 2 x XLRM,
hver med separat nivåkontroll. Linjeutgangene har også en fysisk mute-switch under
potmeteret.
Hodetelefonforsterkeren er kraftig nok til å drive høyohmige hodetelefoner.

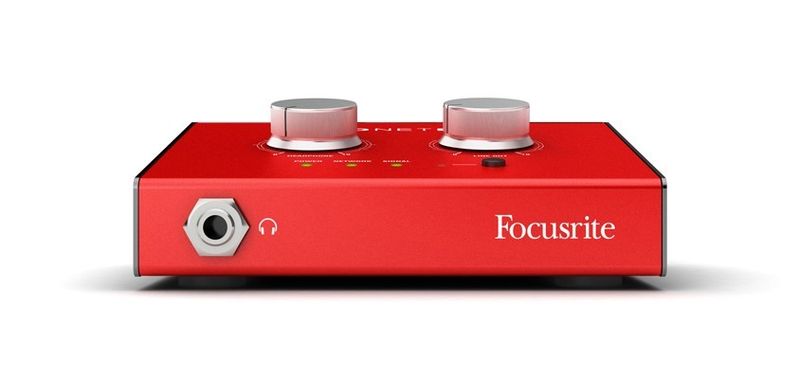

Undersiden av enheten har anti-skli matte og skru-feste for mikrofonstativ
RedNet AM2 har integrert Gigabit Ethernet switch og to nettverksporter på Ethercon,
for enkel daisy-chaining av enheter. Boksen strømforsynes via Ethernet (PoE), eller med
12V DC PSU.
Spesifikasjoner
Line Level Outputs
All measurements taken at +24dBu reference level, maximum gain, RL = 100k?
0 dBFS Reference Levels
+18 or +24dBu (switchable)
Frequency Response
20Hz - 20kHz ±0.05dB
THD + N
<-100dB (0.001%) unweighted, 20Hz - 20kHz; -1dBFS input
Dynamic Range
120dB 'A'-weighted (typical), 20Hz - 20kHz
Crosstalk
Output to Output
<-100dB unweighted, 20Hz - 20kHz; -20dBFS input
Headphone Output
All measurements taken at +19dBm reference level, maximum gain, RL = 600?
0 dBFS Reference Levels
+19dBm
Frequency Response
20Hz - 20kHz ±0.05dB
THD + N
<-100dB (0.001%) unweighted, 20Hz - 20kHz; -1dBFS input
Dynamic Range
118dB 'A'-weighted (typical), 20Hz - 20kHz
Output Impedance
5?
Headphone Impedance
32? - 600?
Crosstalk
Output to Output
<-90dB unweighted, 20Hz - 20kHz; -20dBFS input
Digital Performance
Supported Sample Rates
44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources
Internal or from Dante Network Master.
Minimum Latency
1ms
Front Panel Connectivity
Outputs
Headphone Outputs
1 x 1/4" stereo jack
Rear Panel Connectivity
Outputs
Line Outputs
2 x Male XLR
PSU & Network Connections
PSU (PoE and DC)
1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector.
Network
2 x etherCON NE8FBH, also compatible with standard RJ45 connectors (Accomodates rugged etherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable)

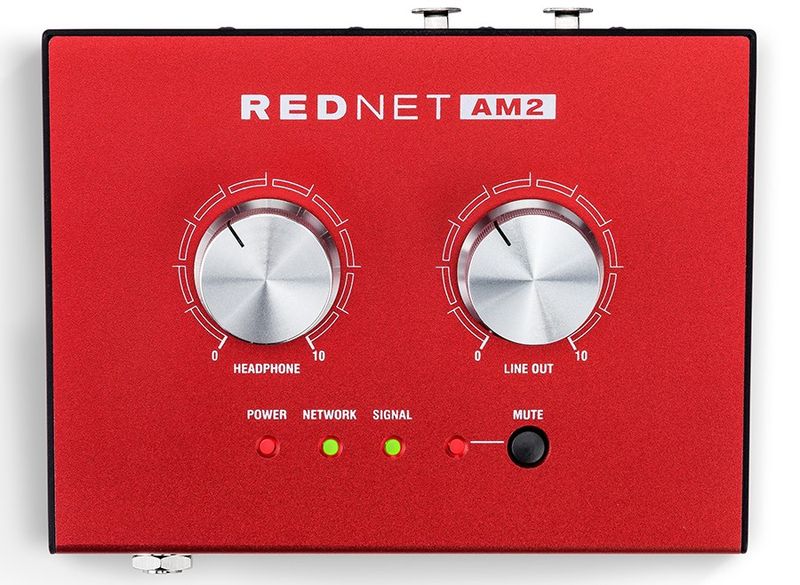

Top Panel Indicators
Power
LED illuminates Green when PoE is connected and Red when DC power is connected (PoE is the default power supply).
Network
Green LED: Indicates device is network master or network slave, shows valid network lock. Green/Red (flashing): Indicates device is locking to network. Red (flashing): Indicates device is attempting to indentify a network.
Signal
Signal indicator LED for both network input channels. Green LED (> -42dBFS), Orange LED (> -6dBFS) and Red LED (> 0dBFS).
Mute
Red LED. Indicates that the XLR Line Outputs are currently muted.
Control Functions
2 x Pots (Independent control of Headphone Output Level and Line Out Level). 1 x Mute Switch (Mutes Line Out).
