Monitor Station V2

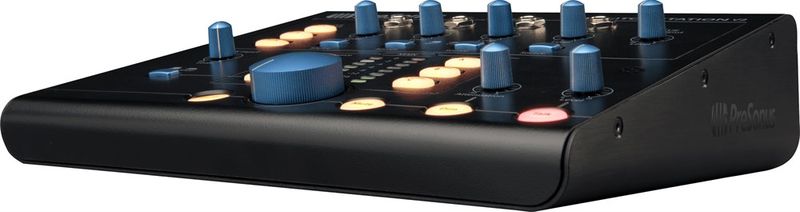

Desktop monitor controller. 3 individual speaker select switches. 3 individual main sources. Large main level control. 4 TRS headphone outputs. LED meters. Built-in electret-condenser talkback microphone and more.
Monitor Station V2 är en avancerad monitorkontroller som ger flexibel kontroll över studiomonitorer och hörlurar. Den har tre par balanserade högtalarutgångar med individuella volymkontroller och fyra hörlursutgångar med egna nivåreglage. Enheten erbjuder flera ingångar, inklusive digital S/PDIF och analoga anslutningar, vilket gör det enkelt att växla mellan olika ljudkällor. Funktioner som Mono, Dim och Talkback med inbyggd mikrofon förbättrar arbetsflödet i studion. En tydlig LED-mätare visar signalnivåer för optimal övervakning. Monitor Station V2 är ett oumbärligt verktyg för professionell ljudövervakning.

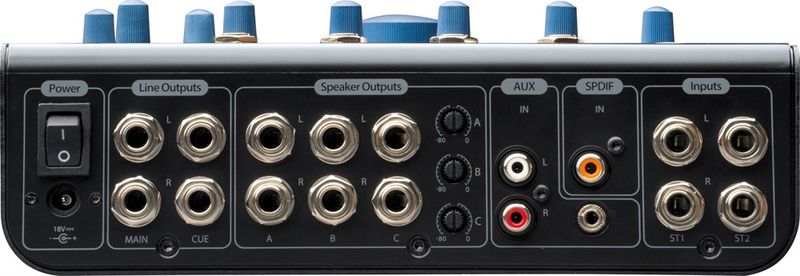

With its intuitive layout, extensive features and I/O and PreSonus®' famed sound quality, the Monitor Station V2 provides a versatile, convenient and affordable solution for managing your studio monitoring system from your desktop. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be fed from an S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. A button switches between the analog Aux and digital S/PDIF inputs.
Audition on up to three stereo pairs of speakers, each with separate level control. All speakers can be available, or one pair at a time, or choose between speakers A and B, with output C active to feed a subwoofer. You can set each set of speakers' level individually so when you switch between speakers, your monitoring level stays the same.

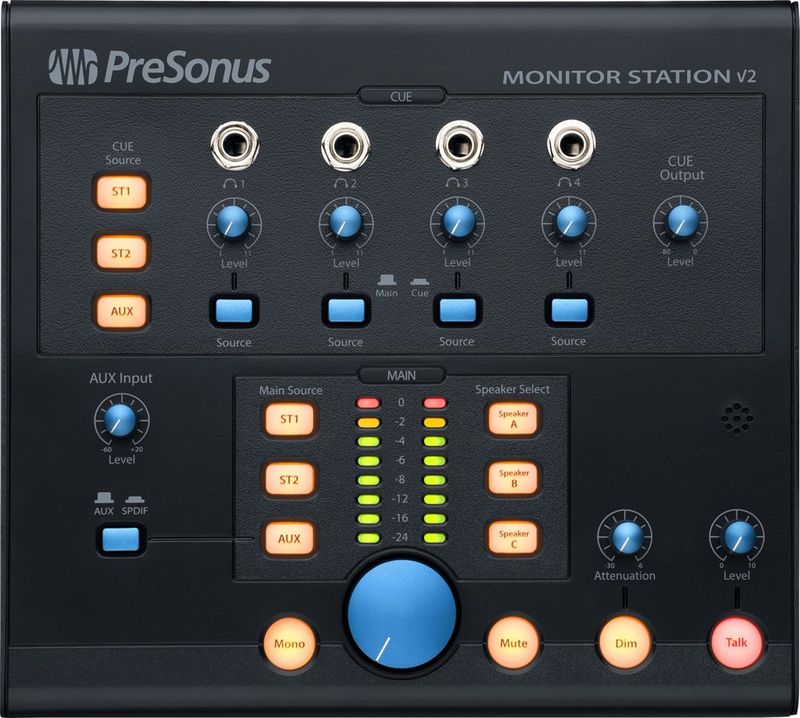

Four loud, clear ¼-inch TRS headphone outs ensure everyone hears every note. Each headphone out has a Main/Cue source selector and individual output-level control. A built-in, electret-condenser Talkback mic let you communicate with the musicians. A flaming red Talk button activates the mic and attenuates the cue signal. Eight-segment, three-color LED meters indicate left and right signal levels and can be set in for +4 dB, +10 dB, or +18 dB levels.
So take control of your monitoring system the way the pros do with the PreSonus Monitor Station V2!
Additional controls
The Monitor Station V2 offers many features to customize your monitoring system. A Mono switch sums the stereo outputs to check for phase problems. A large knob controls the main speaker output level (but not the main line-level outs), and a Dim switch lets you reduce the speaker output by a variable amount. You can mute the speakers as well.
