Trykksonemikrofon for basstromme og andre lavfrekvente instrumenter, inkludert piano.

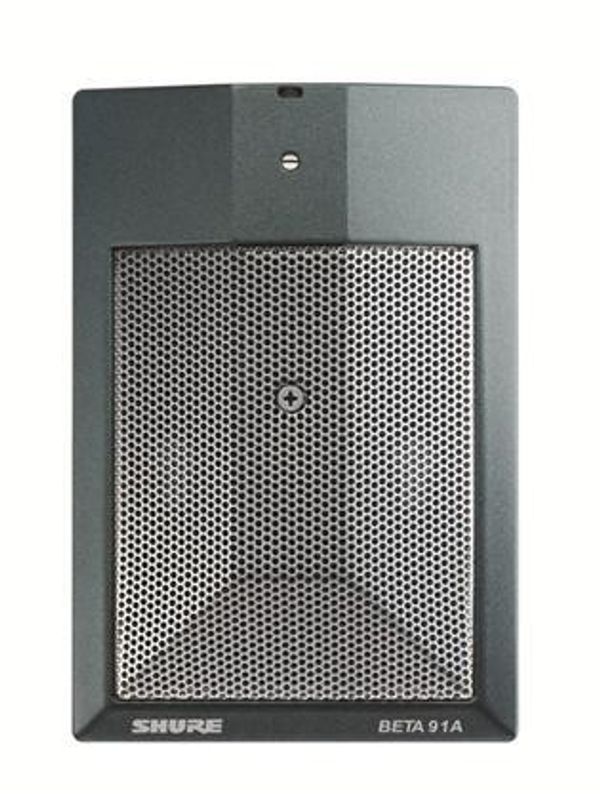

Shure Beta 91A er beregnet for bruk med basstrommer, samt andre tradisjonelle
lavfrekvente bruksområder, inkludert piano.
Med en oppdatert mikrofonkapsel, integrert forforsterker, og XLR-tilkobling har
Beta 91A sterk lavfrekvensrespons og er skreddersydd for bassfrekvensapplikasjoner.
The Beta 91A kombinerer overlegent attack og punch for studiokvalitetslyd,
selv ved svært høye lydtrykk (SPL).
Spesifikasjoner
Type
Electret Condenser
Frequency Response
20 to 20,000 Hz
Polar Pattern
Half-cardioid (cardioid in hemisphere above mounting surface)
Impedance
146 Ohms
Sensitivity (at 1 kHz, open circuit voltage)
-48.5 dBV/Pa (3.8mV)
1 Pascal=94 dB SPL
Maximum SPL (1 kHz at 1% THD)
1000 Ohm load: 151 dB, 2500 Ohm load: 155 dB
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
64 dB
S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
Dynamic Range (at 1 kHz)
1000 Ohm load: 121.5 dB
2500 Ohm load: 125.5 dB
Common Mode Rejection (20 Hz to 20 kHz)
> 55 dB
Clipping Level (20Hz-20 kHz at 1% THD)
1000 Ohm load: 7.50 dBV, 2500 Ohm load: 12.5 dBV
THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL
Self Noise (typical, equivalent SPL, A-weighted)
29.5 dB SPL-A
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight
Net: 470 g (16.6 oz.)
Frequency Contour Switch
7 dB of attenuation centered at 400 kHz
Connector
Three-pin professional audio (XLR), male, balanced
Power Requirements
11-52 Vdc phantom power, 5.6 mA
